Operating Equipment Medical Optical Magnifying Glass LED Headlamp
The medical headlamp adopts optical lens and light metal lens
barrel, the image is clear, and the lens of various magnification
can be selected according to the demand, and the wearing mode can
be selected as head or glasses.
Medical headlamps are widely used in hospitals, centers for disease
control and prevention and other health care institutions, there
are many categories of medical headlamps, widely used, and the
difference between various products is also relatively large.
Generally use LED cold light source, special optical structure
design, showing a good spot, integrated headband, remove the
optical fiber, power supply bondage, more convenient and
comfortable.
The LED Headlight's light source is uniform, the lighting effect is
clear, the liquid crystal headlamp is light in weight, and will not
be tired for a long time. Flexible and easy to use, can be
connected to AC power or portable power supply. Applicable
departments: cardiovascular, Neurosurgery, Ophthalmology,
Stomatology, ENT, surgery, etc.
Description:

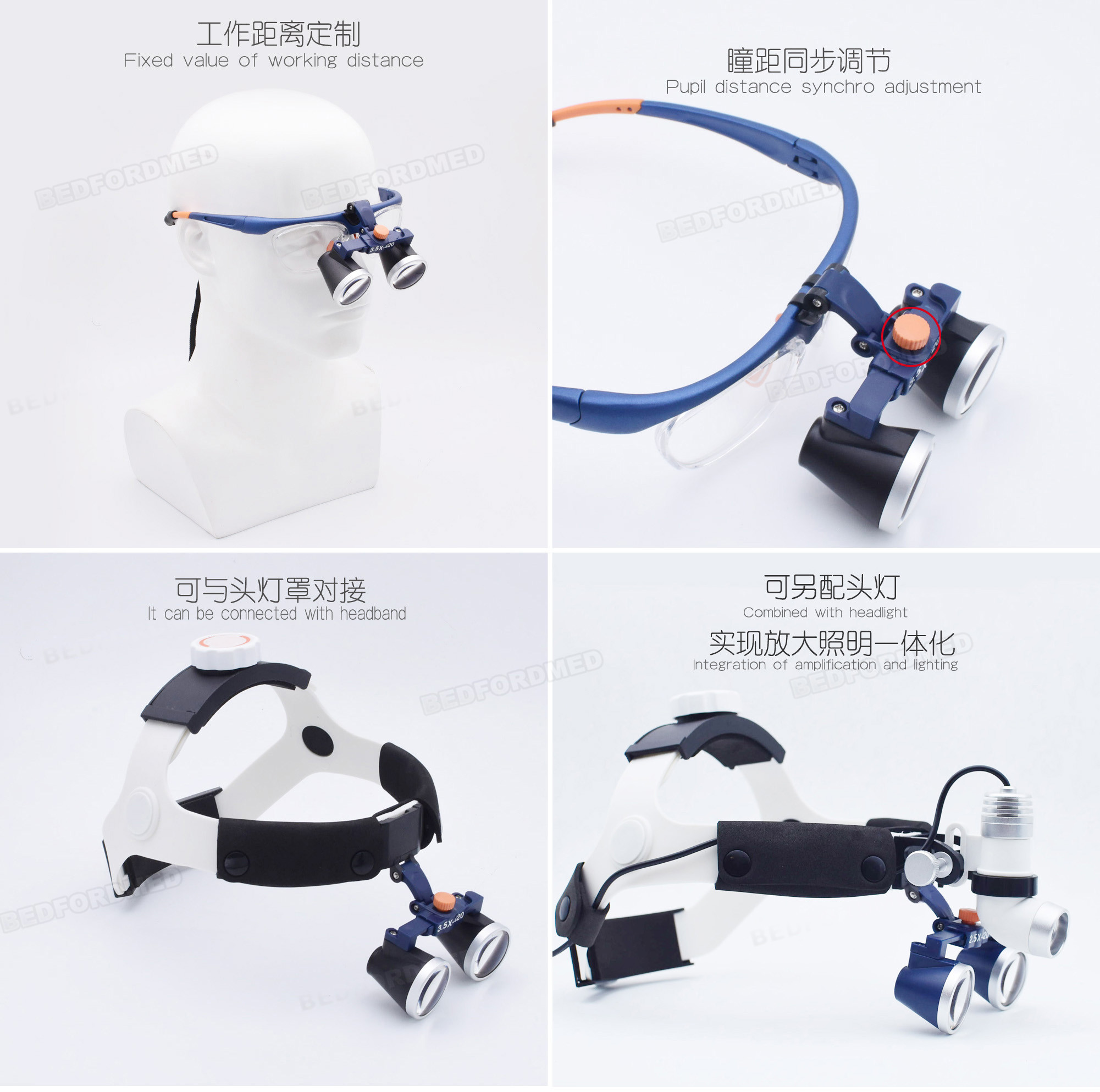

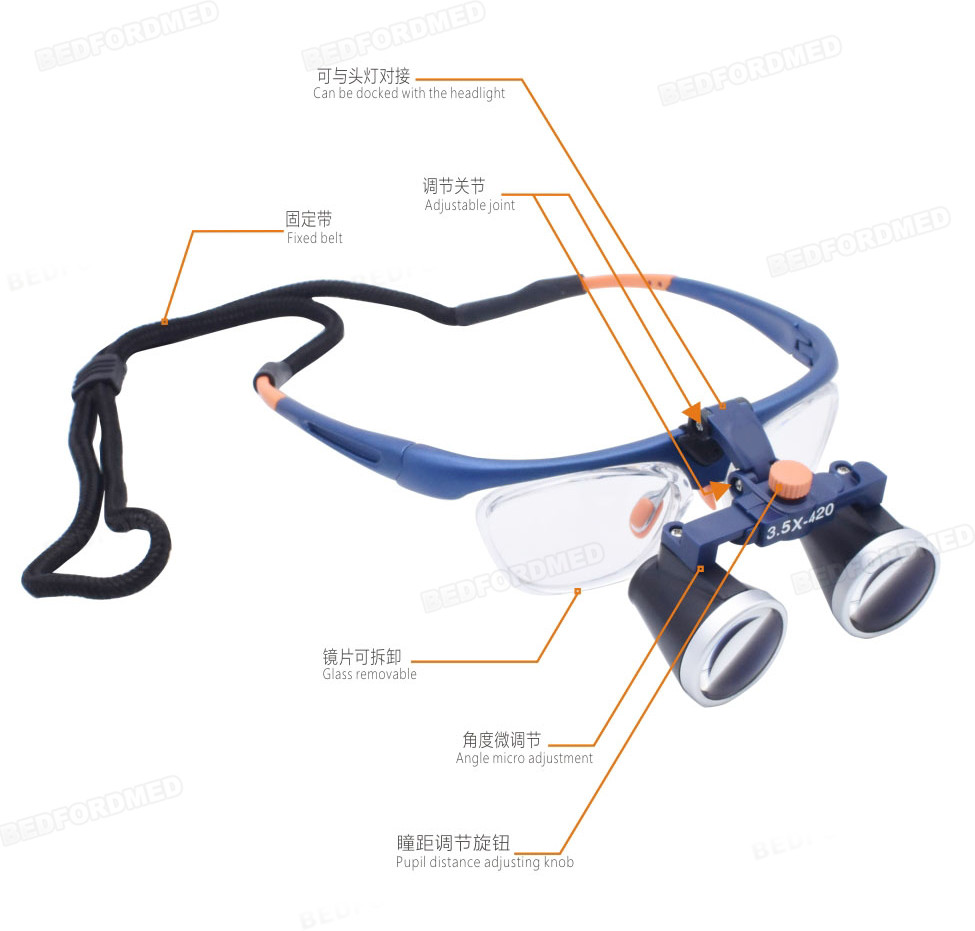

ME-503G-1 Loupe is a Galileo frame-type loupe with low
magnification, the pupil distance is synchronously adjusted,the
joint can be adjusted up and down to get accurate observation
position quickly.
After combine with headlight,it could achieve lighting and
amplification all-in-one,more accurate.
Parameter Of ME-503G-1 Operating Loupe:
| Model | Operating Loupe(ME-503G-1) |
| 1.Magnification | 2.5X,3.5X |
| ,Work distance | 340mm,420mm,500mm |
| View field | ≥φ70mm |
| Pupil distance | 54mm~68mm |
| Depth of field | standard work distance±50mm |
| Net weight | 100g |
Package size
| 185X125X70mm |
| 200X130X70mm |
| Package | zipper bag+paper box |
Characteristics of Surgical Head Lamp :
high brightness: The LED lamp used in the surgical head lamp has the
characteristics of high brightness, which can provide enough light
so that the doctor can clearly see the surgical site.
Adjustment function: The surgical headlamp usually has the function of brightness
adjustment and color temperature adjustment, which can be adjusted
according to the needs of the surgical site and the doctor to
achieve the best results.
Light and comfortable: The surgical headlamp is usually made of lightweight materials,
comfortable to wear, and does not cause pressure on the doctor's
head, allowing the doctor to concentrate on the surgical operation
for a long time.
Long life: The LED lamps used in surgical headlamps have the characteristics
of long life and can generally be used for more than thousands of
hours, so that the hospital can save more maintenance and
replacement costs.
Features:
1. Lamp bead part: imported LED lamp bead, high color reduction,
round and uniform spot.
2. Lamp head part: aviation aluminum, unique heat sink, light lamp
head. LED high light, natural light color, local lighting effect is
good, adjustable brightness spot size.
3. Battery part: The lithium battery can be recharged repeatedly,
which takes only 4 hours to charge once, and can be used for dozens
of hours.
4. Head cover part: The head band is designed on ergonomic
principle, which can adjust the elastic size, and the forehead is
wrapped in leather material, which is comfortable to wear.
5. Long life of lamp beads ≧ 50,000 hours.
6. Departments used: Ent, microsurgery, plastic surgery,
Stomatology, obstetrics and gynecology, anorectal and so on.
7. Can be matched with medical magnifying glass series.
