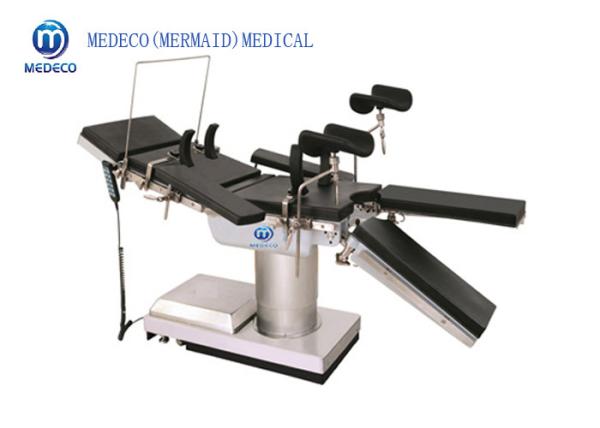

Stable Electic Hydraulic Operating Table OT Bed Doctor Examination
Surgery Table
Electric Hydraulic Operating Table Description:
Electric Hydraulic operating table Multifunction Hospital Medical
MEDS99C (ECOH003) is developed independently by our company wity
innovativ and advanced technologies.
The table is a compehesive one with high-quality and
multi-purposes,which takes the leading position in the domestic
market.The table can be used in almost all kinds of operations by
means of speical design.The bedtop can be moved vertically and
rotated horizontally.
The tableboard is made from high-intensity synthesis panel. X-Ray
transmissive, easy adjustment and easy use of C-arm make the table
can be more capable for any operation.
The operating table is controlled by Control Circuit, which is easy
operation, low noise,reliable performance.
Electric Hydraulic Operating Table Main Usage&Structure
Main Usage: Electric Operating Table can be operated for Clinical
use.
Structure:Operating Table consists of two parts including
mechanical and electro-hydraulic control system.
Depending on manual operation,the product can meet the requirement
of posture in clinical operation.
Tag: Ophthalmic Operating Table; Gynecology examination Table;
Hydraulic Operation Table
Medical Table Patameter:
| Model | Length | Width | Table height | Stroke |
| MEDS99C | 2125mm | 550mm | 600mm~950mm | ≥350mm
|
| Movements | Model:99C |
| Forward tilt | ≥20º |
| Backward tilt | ≥15º |
| Lateral Tilt(left and right) | ≥15º |
| Head plate | Up | ≥45º |
| Down | ≥90º |
| Back plate | Up | ≥85º |
| Down | ≥40º |
| Leg plate | Down | ≥90º |
| spilt | ≥90º |
| Waist plate liffting | ≥80mm |
| Platform Horizontal movement | ≥400mm |
| Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Anaesthetic Screen | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 2 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
| 8 | Body Restraint Strap | 1 | Optional |
| 9 | foot plate | 2 | Optional |
Shanghai MedEco Industry Co.,Ltd. one excellent medical equipment
manufacturer and supplier under the group of Mermaid medical
Industry Limited Offering a combination of medical equipment to
medical professionals and hospitals around the globe, specializes
in Operating lamp, Operating table, Medical Pendant ,Hospital
furniture, Hospital bed, Dialysis Chairs ,Autoclave, X-Ray Machine
and much more. The company has passed international quality system
ISO9001 and ISO13485 attestation and the system of national quality
certification of YY/T0287 as well as EEC product CE certification.
